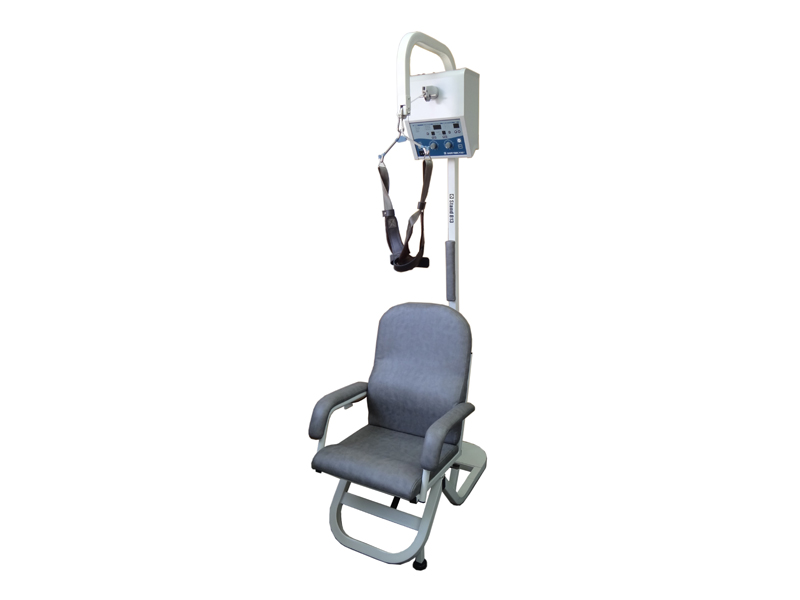

Traction System
Model : Digit Trac 930
Automatic malfunction detection capability tested under international safety standards for greater safety. Traction system complies with human physiological characteristics. Stable traction during hold and rest increases treatment effectiveness and comfort. Full human interface and operation design considerations.
�
Awarded medical device quality certification and having successfully passed IEC60601-1 safety standards testing, the Advanced Microprocessor Controlled Cervical-Lumbar Traction System meets your highest professional requirements with its specific features.
�
Awarded medical device quality certification and having successfully passed IEC60601-1 safety standards testing, the Advanced Microprocessor Controlled Cervical-Lumbar Traction System meets your highest professional requirements with its specific features.
Product Features: Provided with max. force 40 lb(18kg)／110 lb(50kg)／200 lb(91kg) exchanging by switch, safety operation, automatic tension compensation: During the therapy period, if the patient movement causes tension decreased, the machine can automatically compensate the tension back to original force value. This will make therapy more accurate and effective than ordinary traction equipment.
¨ Note: The application of this device should be prescribed by neurologist, orthopedist or the doctor of physical medicine and rehabilitation.
Specifications:
| Traction Force: Traction Force compensation: Force display: Traction Speed: Continuous traction / release time: Therapy Mode: Traction Timing: Safety System: Power Supply: Current: Allowable Voltage Fluctuation: Casing leakage of electricity: Ground resistance: Electric safety degree: EMC tested: Classification of equipment: CE Marking: Weight: Dimensions : |
Max. 40 lb(18kg)／110 lb(50kg)／200 lb(91kg) interchangeable Computerized automatic compensation Actual Force／Preset Force – automatic switching display Stepless, Continuous and Adjustable 00~99(s), by static traction force “- -“ selection. Continuous／Intermittent／Harmonized Intermittent／Progressive 1~99 minutes ±2% Multiple protection alarms – service/overload/rest>hold/remote 1.2A(100V, 110V, 120V), 0.6A(220V, 230V, 240V) Max. 150VA Max. ±10% < 100μA < 0.1Ω Class I / Type BF (IEC 60601-1) IEC 60601-1-2 requirements Class IIb as per MDD 93/42/EEC Annex IX N/A 30lbs／13.6kgs 36(L) x 29.5(W) x 27(H) (cm) |
Package Includes –
Digit-Trac 930 x 1, Remote Stop x 1, Hand Screw x 4, Power Cord x 1, User’s Manual x 1
¨ Note: The data of this catalog are subject to be changed without noticing.
